electrohusillos cambio herramienta autoMático
electrohusillos cambio herramienta automático

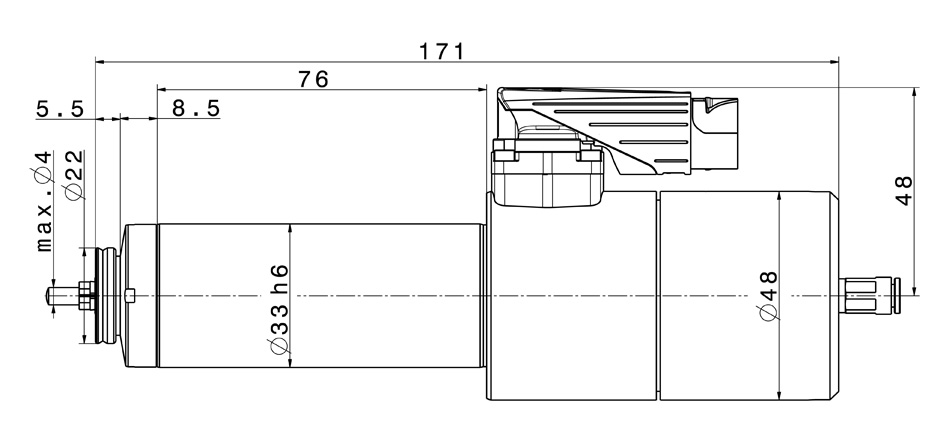

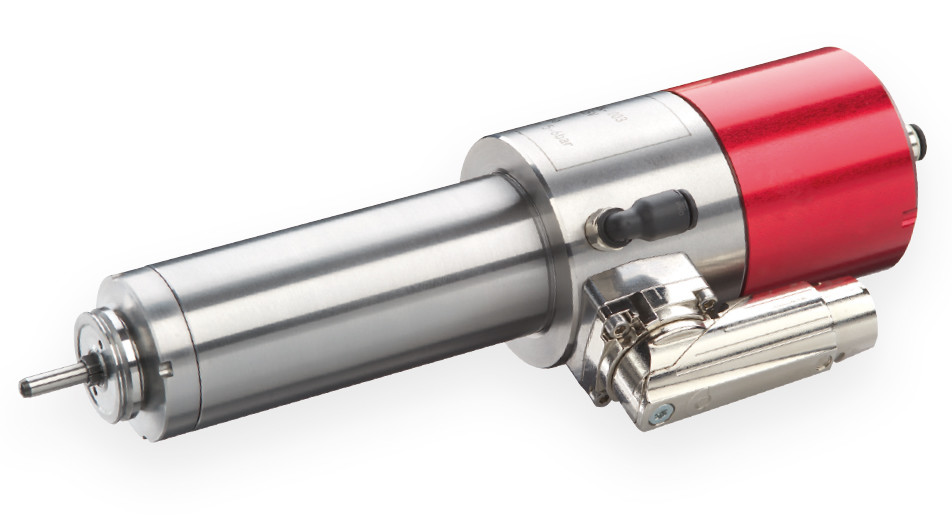

Part No. | 2002 0400 |
Applications | Drilling, Milling, Grinding, Engraving |
Housing diameter | 33 mm |
Motor system | Brushless DC motor (BLDC) |
Speed range | 5,000 - 60,000 rpm |
Frequency | 83 – 1,000 Hz |
Voltage | 49 V |
Current | S1: 14 A, max. 24 A / 5s |
Torque | S1: 17.2 Ncm, max. 27 Ncm |
Output power | S1: 900 W, max. 900 W |
Motor protection | PTC |
Weight | 1.0 kg |
Bearing system | 3 x Hybrid, lifetime lubrication |
Run-out (taper) | ≤ 1 µm |
Chuck clamping range | max. Ø 4.0 mm |
Chuck type | C3 |
Tool change | Pneumatic 5 – 6 bar (hose Ø 4 mm) |
Cooling system | Cooling via clamping bracket |
Protection category | IP 55/57 (with sealing air + optional accessory: sealing cap 2001 2618) |
Protected against dirt and cooling lubricant | Sealing air 27 l/min@STP (hose outside Ø 4 mm) |
Housing material | Stainless steel |
Cable / plug type | 915 |
Inverter recommendation | e@syDrive® 4625* e@syDrive® 4626 |
Highlights | Taper cleaning at 6 bar |
*Reduced output power |
Part No. | 2000 8200 |
Applications | Drilling, Milling, Grinding, Engraving |
Housing diameter | 33 mm |
Motor system | Brushless DC motor (BLDC) |
Speed range | 5,000 - 100,000 rpm |
Frequency | 83 – 1,666 Hz |
Voltage | 49 V |
Current | S1: 14 A, max. 24 A |
Torque | S1: 10 Ncm, max. 14.6 Ncm |
Output power | S1: 800 W, max. 870 W |
Motor protection | KTY |
Weight | 1.0 kg |
Bearing system | 3 x Hybrid, lifetime lubrication |
Run-out (taper) | ≤ 1 µm |
Chuck clamping range | max. Ø 4.0 mm |
Chuck type | C3 |
Tool change | Pneumatic 5 – 6 bar (hose Ø 4 mm) |
Cooling system | Cooling via clamping bracket |
Protection category | IP 55/57 (with sealing air + optional accessory: sealing cap 2001 2617) |
Protected against dirt and cooling lubricant | Sealing air 27 l/min@STP (hose outside Ø 4 mm) |
Housing material | Stainless steel |
Cable / plug type | 915 |
Inverter recommendation | e@syDrive® 4625* e@syDrive® 4626 |
Highlights | Taper cleaning at 6 bar |
Inverter recommendation | e@syDrive® 4625* e@syDrive® 4626 |
*Reduced output power |

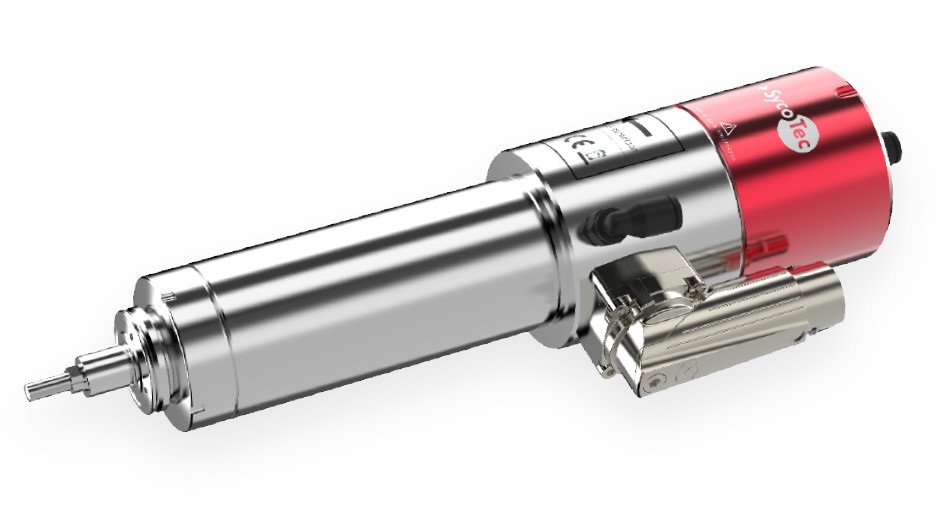

Part No. | 2002 2100 |
Applications | Drilling, Milling, Grinding, Engraving |
Housing diameter | 36 mm |
Motor system | Brushless DC motor (BLDC) |
Speed range | 5,000 - 60,000 rpm |
Frequency | 83 – 1,000 Hz |
Voltage | 49 V |
Current | S1: 14 A, max. 24 A |
Torque | S1: 17.2 Ncm, max. 27 Ncm |
Output power | S1: 900 W, max. 900 W |
Motor protection | PTC |
Weight | 1.3 kg |
Bearing system | 4 x Hybrid, lifetime lubrication |
Run-out (taper) | ≤ 1 µm |
Chuck clamping range | max. Ø 4.0 mm |
Chuck type | C3 |
Tool change | Pneumatic 5 – 6 bar (hose Ø 4 mm) |
Cooling system | Cooling via clamping bracket |
Protection category | IP 55/57 (with sealing air + optional accessory: sealing cap 2001 2617) |
Protected against dirt and cooling lubricant | Sealing air 27 l/min@STP (hose outside Ø 4 mm) |
Housing material | Stainless steel |
Cable / plug type | 915 |
Inverter recommendation | e@syDrive® 4625* e@syDrive® 4626 |
Highlights | Taper cleaning at 6 bar |
*Reduced output power |

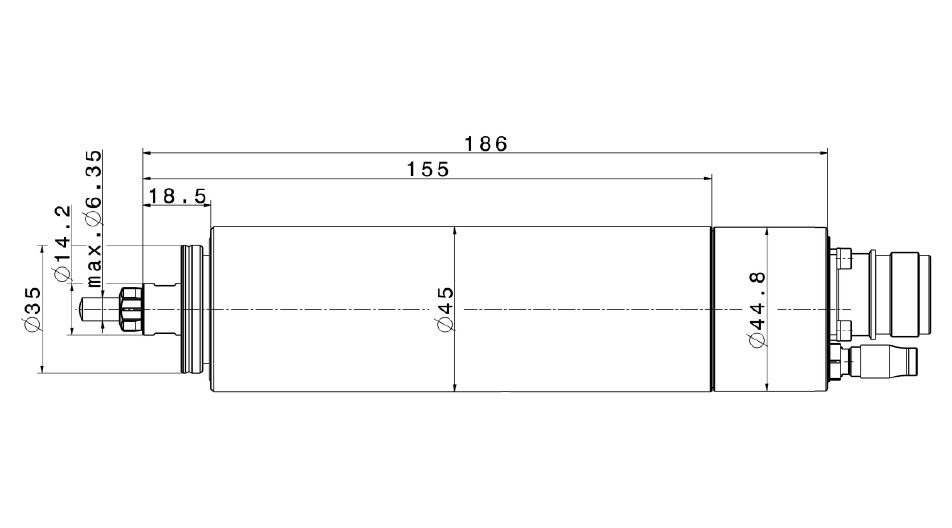

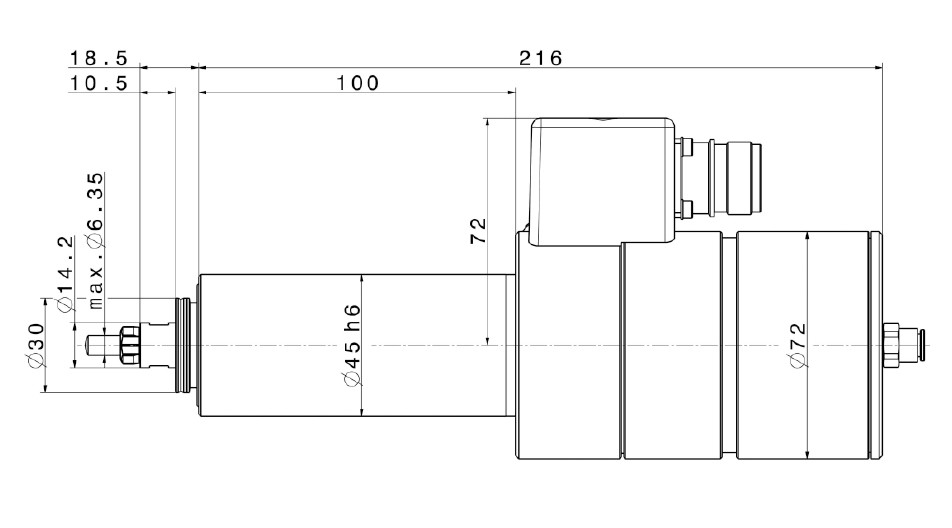

Part No. | 1005 0275 |
Applications | Drilling, Milling, Grinding, Engraving |
Housing diameter | 45 mm |
Motor system | Brushless DC motor (BLDC) |
Speed range | 5,000 - 50,000 rpm / 60,000* rpm |
Frequency | 83 – 833 Hz / 1,000* Hz |
Voltage | 45 V |
Current | max. 16 A |
Torque | S1: 17 Ncm, max. 17 Ncm |
Output power | S1: 900 W, max. 1,050 W |
Motor protection | PTC-100°C |
Weight | 1.7 kg |
Bearing system | 3 x Hybrid, lifetime lubrication |
Run-out (taper) | ≤ 1.5 µm |
Chuck clamping range | Ø 1.0 – 6.35 mm (incl. 1/8'' + 1/4'') |
Chuck type | C4 |
Tool change | Manual (combination wrenches) |
Cooling system | Cooling via clamping bracket |
Protection category | IP 54 |
Protected against dirt and cooling lubricant | Sealing air 0.5 – 0.8 bar (hose outside Ø 4 mm) |
Housing material | Stainless steel |
Cable / plug type | M23 / M23-QL |
Inverter recommendation | e@syDrive® 4625 e@syDrive® 4626 |

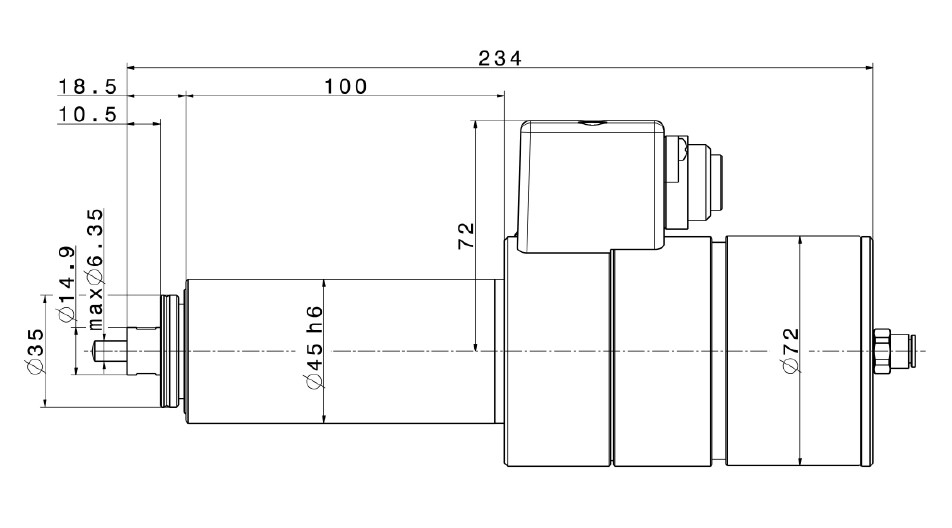

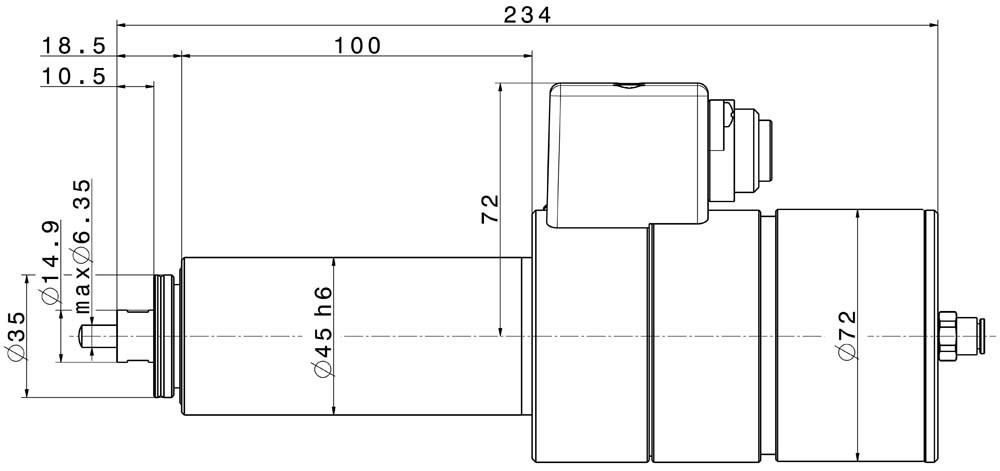

Part No. | 1002 4700 |
Applications | Drilling, Milling, Grinding, Engraving |
Housing diameter | 45 mm |
Motor system | Brushless DC motor (BLDC) |
Speed range | 5,000 - 50,000 rpm / 60,000* rpm |
Frequency | 83 – 1,000 Hz |
Voltage | 45 V |
Current | max. 16 A |
Torque | S1: 17 Ncm, max. 17 Ncm |
Output power | S1: 900 W, max. 1,050 W |
Motor protection | PTC-100°C |
Weight | 3.2 kg |
Bearing system | 3 x Hybrid, lifetime lubrication |
Run-out (taper) | ≤ 1.5 µm |
Chuck clamping range | Ø 1.0 – 6.35 mm (incl. 1/8'' + 1/7'') |
Chuck type | C4 |
Tool change | Pneumatic 7 – 8 bar (hose inside/outside Ø 4/6 mm) |
Cooling system | Cooling via clamping bracket |
Protection category | IP 54 |
Protected against dirt and cooling lubricant | Sealing air 0.5 – 0.8 bar (hose inside/outside Ø 4/6 mm) |
Housing material | Stainless steel |
Cable / plug type | M23 / M23-QL |
Inverter recommendation | e@syDrive® 4625 e@syDrive® 4626 |
*Short term |

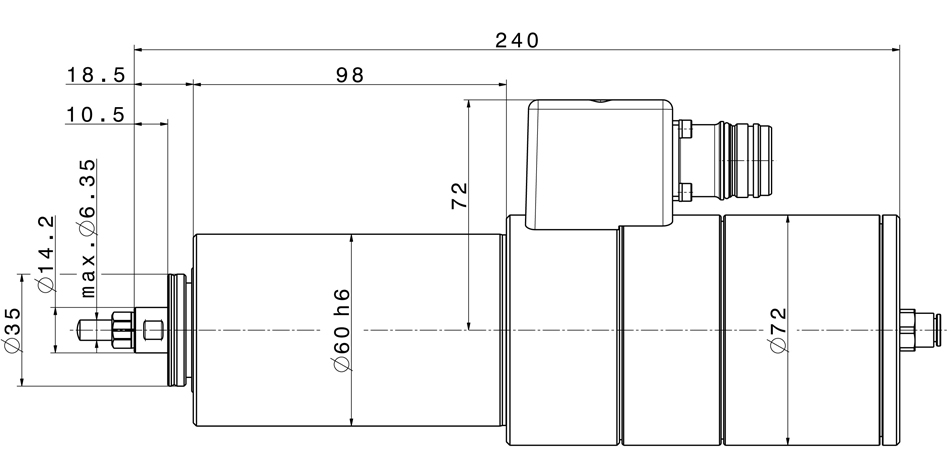

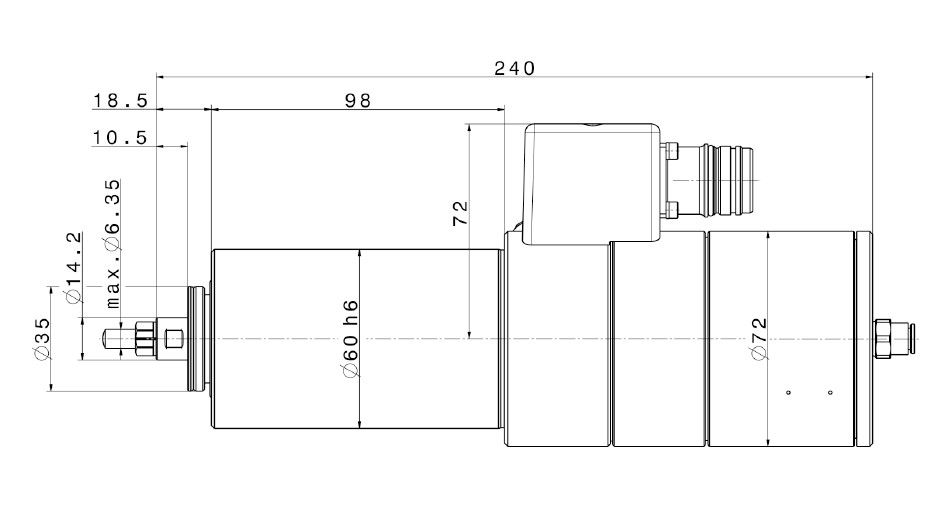

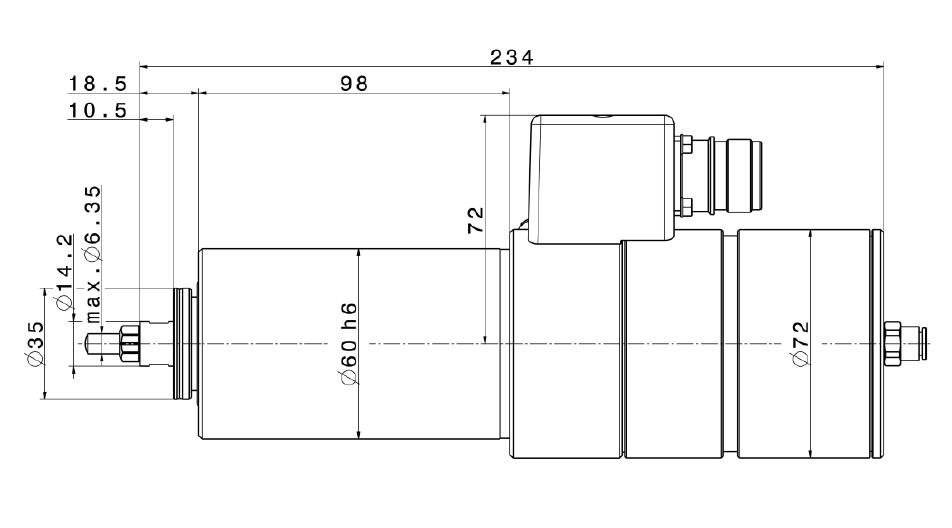

Part No. | 1002 5587 |
Applications | Drilling, Milling, Grinding, Engraving |
Housing diameter | 60 mm |
Motor system | Brushless DC motor (BLDC) |
Speed range | 2,500 – 25,000 rpm |
Frequency | 42 – 417 Hz |
Voltage | 230 V |
Current | max. 12 A |
Torque | S1: 70 Ncm, max. 130 Ncm |
Output power | S1: 1,530 W, max. 2,800 W |
Motor protection | PTC-100°C |
Weight | 4.0 kg |
Bearing system | 3 x Steel, lifetime lubrication |
Run-out (taper) | ≤ 1.5 µm |
Chuck clamping range | Ø 1.0 – 6.35 mm (incl. 1/8'' + 1/7'') |
Chuck type | C4 |
Tool change | Pneumatic 7 – 8 bar (hose inside/outside Ø 4/6 mm) |
Cooling system | Cooling via clamping bracket |
Protection category | IP 54 |
Protected against dirt and cooling lubricant | Sealing air 0.5 – 0.8 bar (hose inside/outside Ø 4/6 mm) |
Housing material | Stainless steel |
Cable / plug type | M23 / M23-QL |
Inverter recommendation | e@syDrive® 4638 |

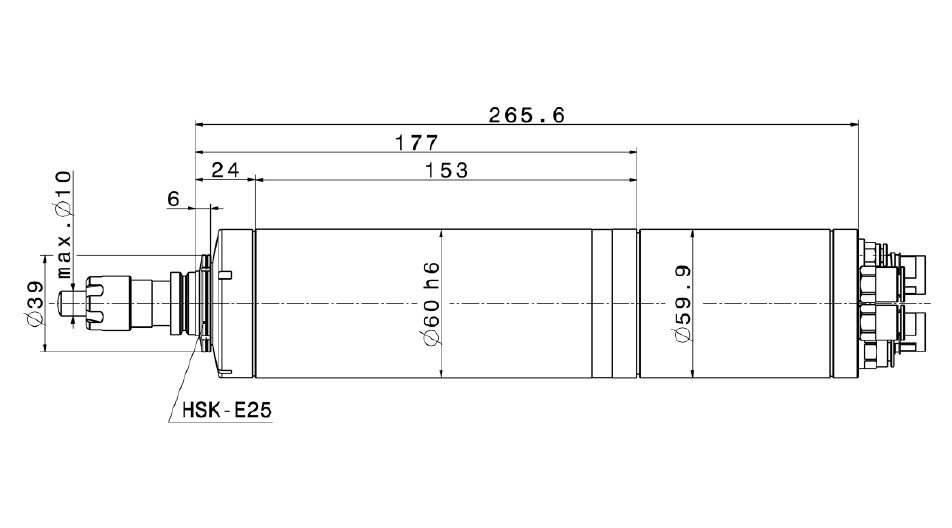

Part No. | 2001 8900 |
Applications | Drilling, Milling, Grinding, Engraving |
Housing diameter | 60 mm |
Motor system | Brushless DC motor (BLDC) |
Speed range | 5,000 - 50,000 rpm |
Frequency | 1,667 Hz |
Voltage | 168 V |
Current | max. 15 A |
Torque | S1: 66 Ncm, max. 120 Ncm |
Output power | S1: 3,100 W, max. 5,000 W |
Motor protection | PTC-100°C |
Weight | 3.5 kg |
Bearing system | 4 x Hybrid, lifetime lubrication |
Run-out (taper) | ≤ 1 µm |
Chuck clamping range | Ø 1.0 – 10.00 mm (ER16) |
Tooling System | Hollow taper shank HSK-E25 |
Tool holder reccomendation | HSK-E25xER16Mini-S (2002 3428) |
Tool change | Pneumatic 5.5 – 6 bar (hose Ø 6 mm) |
Taper cleaning | Integrated |
Cooling system | Internal housing cooling 0.7 l/min (hose Ø 8 mm) |
Protection category | IP 55 |
Protected against dirt and cooling lubricant | Sealing air 30 l/min@STP (hose Ø 4 mm) |
Housing material | Stainless steel |
Cable / plug type | M17-Power / M17-Sensor |
Inverter recommendation | e@syDrive® 4638 |
Highlights | • Water cooling system • Clamping monitoring: ''clamped'', ''unclamped'', ''clamped without tool'' |

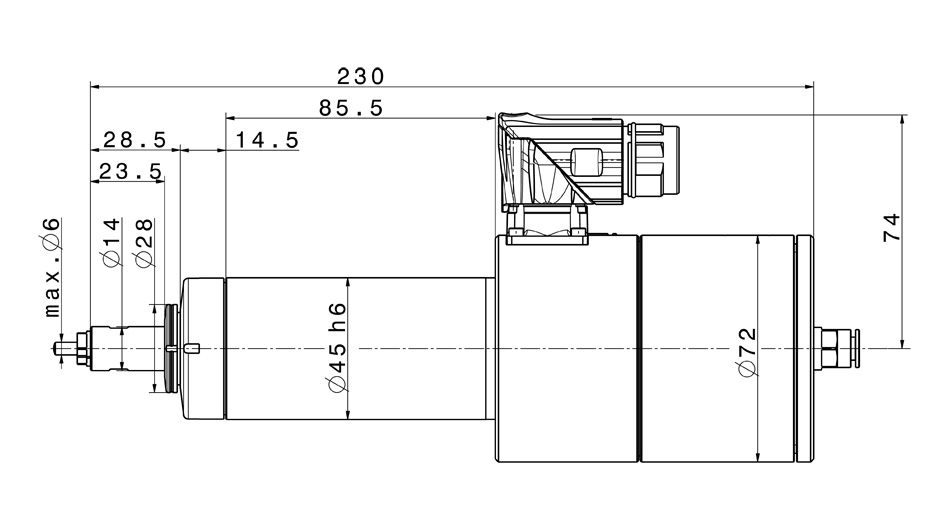

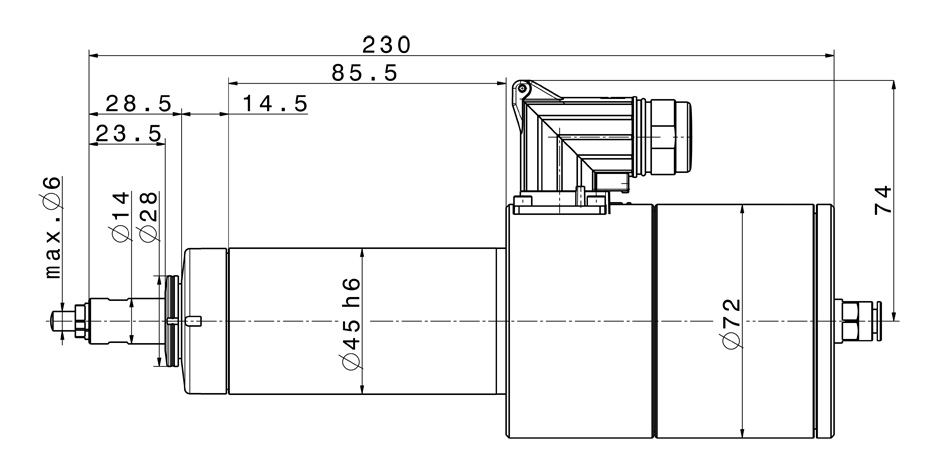

Part No. | 2002 6920 |
Applications | Drilling, Milling, Grinding, Engraving |
Housing diameter | 45 mm |
Motor system | Brushless DC motor (BLDC) |
Speed range | 6,000 – 60,000 rpm |
Frequency | 100 – 1,000 Hz |
Voltage | 165 V |
Current | S1: 9 A, max. 15 A |
Torque | S1: 38 Ncm, max. 59 Ncm |
Output power | S1: 2,000 W, max. 3,700 W |
Motor protection | PTC |
Weight | 2.6 kg |
Bearing system | 3 x Hybrid, lifetime lubrication |
Run-out (taper) | ≤ 1 µm |
Chuck clamping range | max. Ø 6.0 mm |
Chuck type | C5 |
Tool change | Pneumatic 5,5 – 6 bar (hose Ø 6 mm) |
Cooling system | Cooling via clamping bracket |
Protection category | IP 55 |
Protected against dirt and cooling lubricant | Sealing air 25 – 30 l/min@STP (hose Ø 6 mm) |
Housing material | Stainless steel |
Cable / plug type | M23 / M23-QL |
Inverter recommendation | e@syDrive® 4638 |
Highlights | • Taper cleaning at 6 bar • Collet stop |

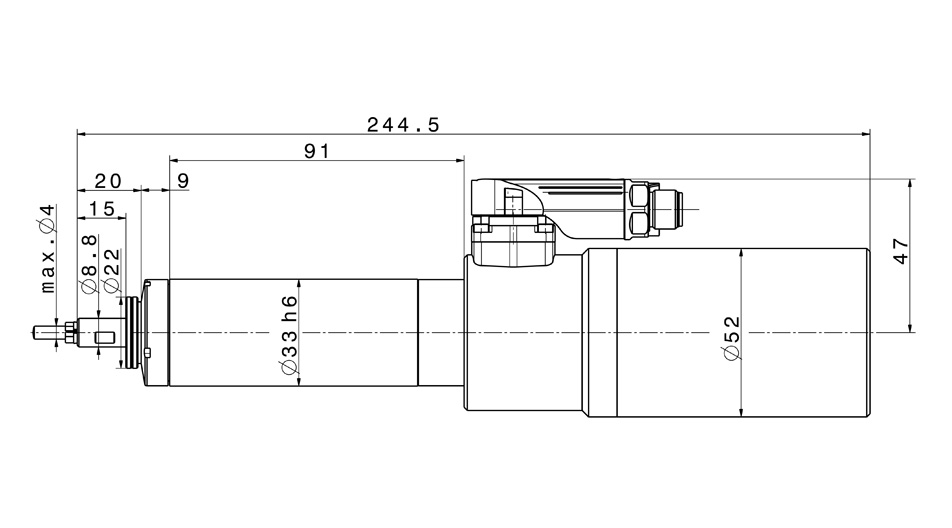

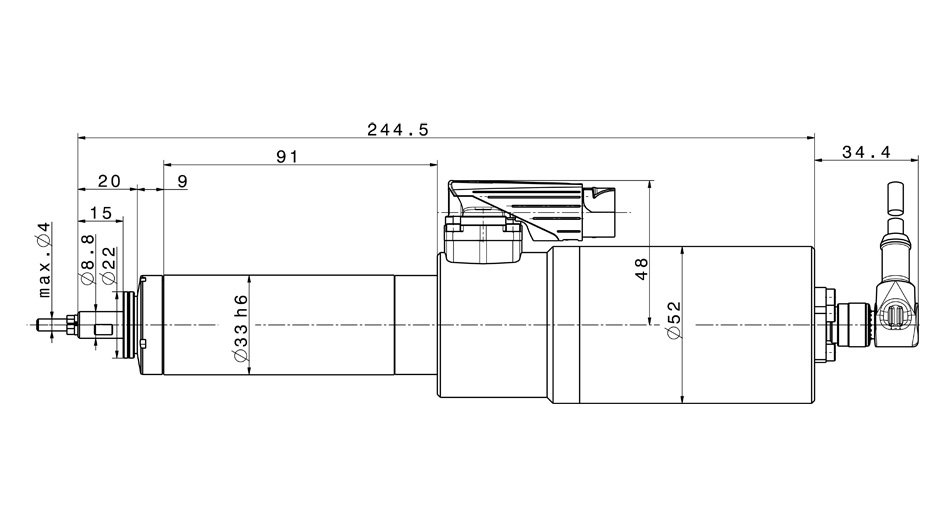

Part No. | 2003 0336 |
Applications | Drilling, Milling, Grinding |
Housing diameter | 33 mm |
Motor system | 3 Phase asynchronous motor |
Speed range | 6,000 - 100,000 rpm |
Frequency | 100 - 1,666 Hz |
Voltage | 49 V |
Current | S1: 6.6 A, max. 8 A |
Torque | S1: 8.4 Ncm, max. 8.4 Ncm |
Output power | S1: 420 W, max. 500 W |
Motor protection | KTY / PTC600 |
Weight | 1.3 kg |
Bearing system | 2 x Hybrid, lifetime lubrication |
Run-out (taper) | ≤ 1 µm |
Chuck clamping range | max Ø 4.0 mm |
Chuck type | C3 |
Tool change | Electrical 24 V DC / 2 A |
Cooling system | Cooling via clamping bracket |
Protection category | IP 55 |
Protected against dirt and cooling lubricant | Sealing air 27 l/min@STP (hose inner Ø 4 mm) |
Housing material | Stainless steel |
Cable / plug type | 915 |
Inverter recommendation | e@syDrive® 4310 (IP 00)*e@syDrive® 4320 (IP 00)*e@syDrive® 4624*e@syDrive® 4625e@syDrive® 4626 |
Highlights | • Electrical tool change with 24 V DC• Taper cleaningr• Collet stop• Clamping monitoring: ''clamped/unclamped'' |

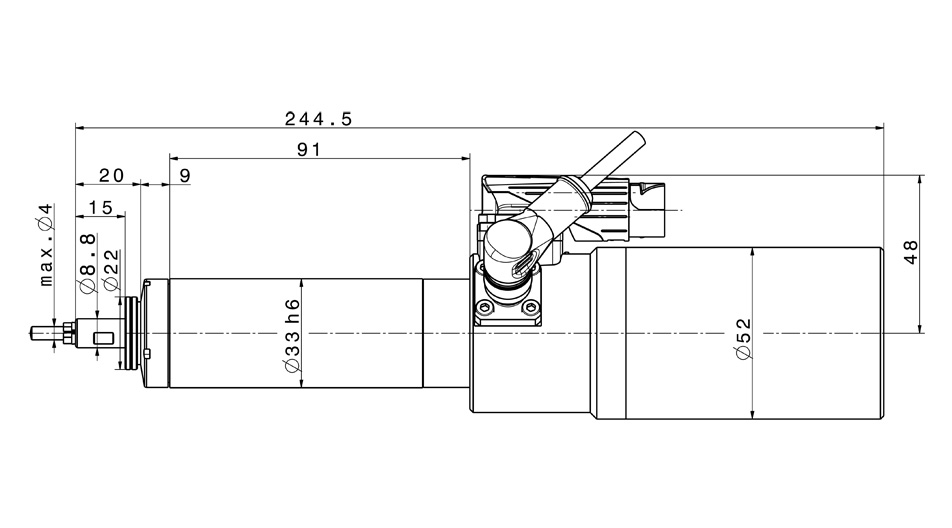

Part No. | 2002 9290 |
Applications | Drilling, Milling, Grinding |
Housing diameter | 33 mm |
Motor system | 3 Phase asynchronous motor |
Speed range | 6,000 - 100,000 rpm |
Frequency | 100 - 1,666 Hz |
Voltage | 49 V |
Current | S1: 6.6 A, max. 8 A |
Torque | S1: 8.4 Ncm, max. 8.4 Ncm |
Output power | S1: 420 W, max. 500 W |
Motor protection | KTY / PTC600 |
Weight | 1.3 kg |
Bearing system | 2 x Hybrid, lifetime lubrication |
Run-out (taper) | ≤ 1 µm |
Chuck clamping range | max Ø 4.0 mm |
Chuck type | C3 |
Tool change | Electrical 24 V DC / 2 A |
Cooling system | Cooling via clamping bracket |
Protection category | IP 55 |
Protected against dirt and cooling lubricant | Sealing air 27 l/min@STP (hose inner Ø 4 mm) |
Housing material | Stainless steel |
Cable / plug type | 915 |
Inverter recommendation | e@syDrive® 4310 (IP 00)*e@syDrive® 4320 (IP 00)*e@syDrive® 4624*e@syDrive® 4625e@syDrive® 4626 |
Highlights | • Electrical tool change with 24 V DC• Taper cleaningr• Collet stop• Clamping monitoring: ''clamped/unclamped'' |
Part No. | 2003 0337 |
Applications | Drilling, Milling, Grinding |
Housing diameter | 33 mm |
Motor system | 3 Phase asynchronous motor |
Speed range | 6,000 - 100,000 rpm |
Frequency | 100 - 1,666 Hz |
Voltage | 49 V |
Current | S1: 6.6 A, max. 8 A |
Torque | S1: 8.4 Ncm, max. 8.4 Ncm |
Output power | S1: 420 W, max. 500 W |
Motor protection | KTY / PTC600 |
Weight | 1.3 kg |
Bearing system | 2 x Hybrid, lifetime lubrication |
Run-out (taper) | ≤ 1 µm |
Chuck clamping range | max Ø 4.0 mm |
Chuck type | C3 |
Tool change | Electrical 24 V DC / 2 A |
Cooling system | Cooling via clamping bracket |
Protection category | IP 55 |
Protected against dirt and cooling lubricant | Sealing air 27 l/min@STP (hose inner Ø 4 mm) |
Housing material | Stainless steel |
Cable / plug type | 915 |
Inverter recommendation | e@syDrive® 4310 (IP 00)*e@syDrive® 4320 (IP 00)*e@syDrive® 4624*e@syDrive® 4625e@syDrive® 4626 |
Highlights | • Electrical tool change with 24 V DC• Taper cleaningr• Collet stop• Clamping monitoring: ''clamped/unclamped'' |

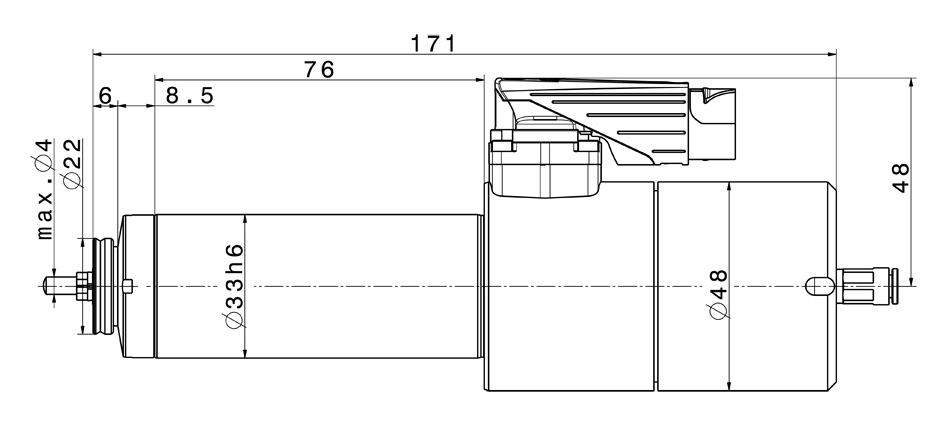

Part No. | 2001 9400 |
Applications | Drilling, Milling, Grinding |
Housing diameter | 33 mm |
Motor system | 3 Phase asynchronous motor |
Speed range | 6,000 - 100,000 rpm |
Frequency | 100 - 1,666 Hz |
Voltage | 49 V |
Current | S1: 6.6 A, max. 8 A |
Torque | S1: 8.4 Ncm, max. 8.4 Ncm |
Output power | S1: 420 W, max. 500 W |
Motor protection | KTY |
Weight | 1.0 kg |
Bearing system | 3 x Hybrid, lifetime lubrication |
Run-out (taper) | ≤ 1 µm |
Chuck clamping range | max Ø 4.0 mm |
Chuck type | C3 |
Tool change | Pneumatic 5 – 6 bar (hose Ø 4 mm) |
Cooling system | Cooling via clamping bracket |
Protection category | IP 55/57 (with sealing air + optional accessory: sealing cap 2001 2618) |
Protected against dirt and cooling lubricant | Sealing air 27 l/min@STP (hose outside Ø 4 mm) |
Housing material | Stainless steel |
Cable / plug type | 915 |
Inverter recommendation | e@syDrive® 4310 (IP 00)*e@syDrive® 4320 (IP 00)*e@syDrive® 4624*e@syDrive® 4625e@syDrive®4626e@syDrive® TV 4504* |
Highlights | Taper cleaning at 6 bar |
*Reduced output power |

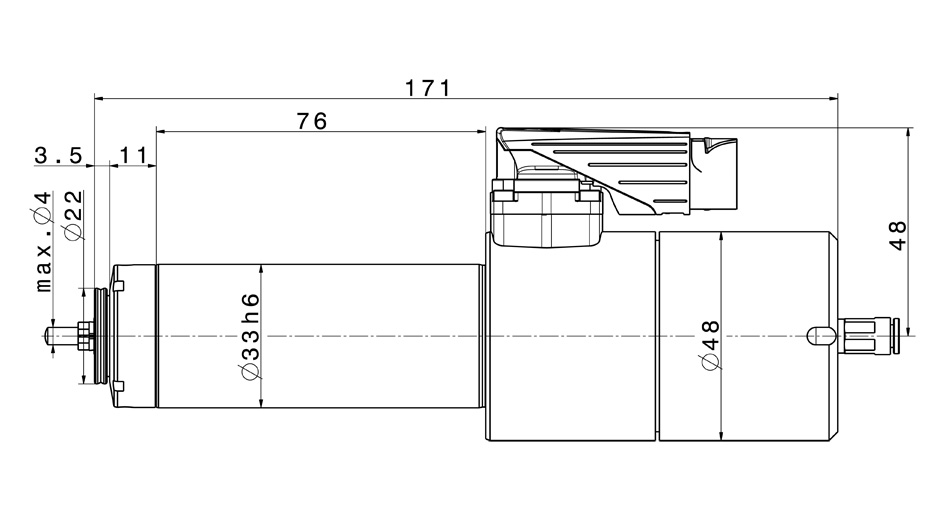

Part No. | 2002 2220 |
Applications | PCB routing |
Housing diameter | 33 mm |
Motor system | 3 Phase asynchronous motor |
Speed range | 6,000 - 100,000 rpm |
Frequency | 100 - 1,666 Hz |
Voltage | 49 V |
Current | S1: 6.6 A, max. 8 A |
Torque | S1: 8.4 Ncm, max. 8.4 Ncm |
Output power | S1: 420 W, max. 500 W |
Motor protection | KTY |
Weight | 1.0 kg |
Bearing system | 3 x Hybrid, lifetime lubrication |
Run-out (taper) | ≤ 1 µm |
Chuck clamping range | max Ø 4.0 mm |
Chuck type | C3 |
Tool change | Pneumatic 5 – 6 bar (hose Ø 4 mm) |
Cooling system | Cooling via clamping bracket |
Protection category | IP 55/57 (with sealing air + optional accessory: sealing cap 2001 2618) |
Protected against dirt and cooling lubricant | Sealing air 27 l/min@STP (hose outside Ø 4 mm) |
Housing material | Stainless steel |
Cable / plug type | 915 |
Inverter recommendation | e@syDrive® 4310 (IP 00)*e@syDrive® 4320 (IP 00)*e@syDrive® 4624*e@syDrive® 4625e@syDrive®4626e@syDrive® TV 4504* |
Highlights | Electrostatic discharge |
*Reduced output power |

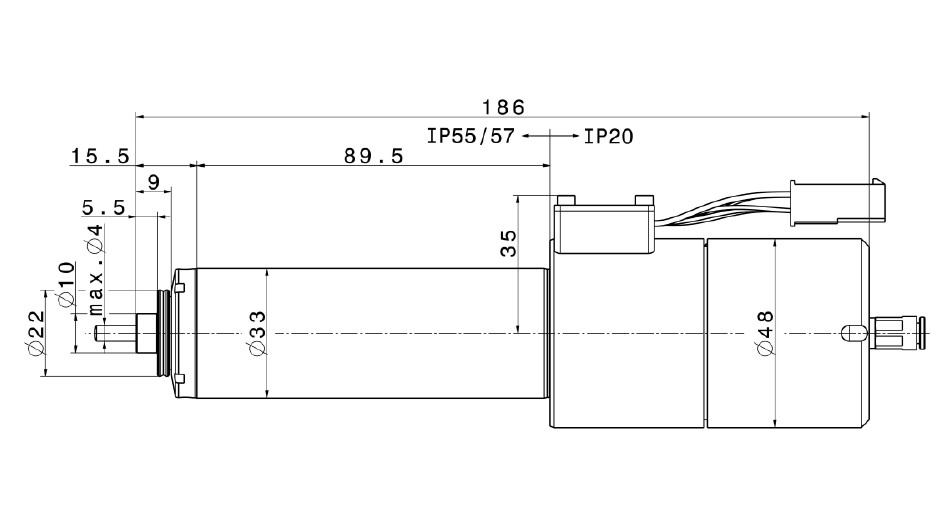

Part No. | 2001 8800 |
Applications | Drilling, Grinding, Engraving, Dental CAD/CAM |
Housing diameter | 33 mm |
Motor system | 3 Phase asynchronous motor |
Speed range | 6,000 - 60,000 rpm |
Frequency | 100 - 1,000 Hz |
Voltage | 49 V |
Current | S1: 6,6 A, max. 8 A |
Torque | S1: 8.4 Ncm, max. 8.4 Ncm |
Output power | S1: 420 W, max. 500 W |
Motor protection | KTY |
Weight | 1.0 kg |
Bearing system | 2 x Steel, lifetime lubrication |
Run-out (taper) | ≤ 1 µm |
Chuck clamping range | max Ø 4.0 mm |
Chuck type | C3 |
Tool change | Pneumatic 5.5 – 6 bar (hose Ø 4 mm) |
Cooling system | Cooling via clamping bracket |
Protection category | IP 55/57 (with sealing air + optional accessory: sealing cap 2001 2618) |
Protected against dirt and cooling lubricant | Sealing air 27 l/min@STP (hose outside Ø 4 mm) |
Housing material | Stainless steel |
Cable / plug type | MFJ |
Inverter recommendation | e@syDrive® 4310 (IP 00)* e@syDrive® 4320 (IP 00)* e@syDrive® 4624* e@syDrive® 4625 e@syDrive® 4626 e@syDrive® TV 4504* |
Highlights | • Taper cleaning at 6 bar • Automatic tool changing system • Electrostatic discharge • Collet stop |
*Reduced output power |

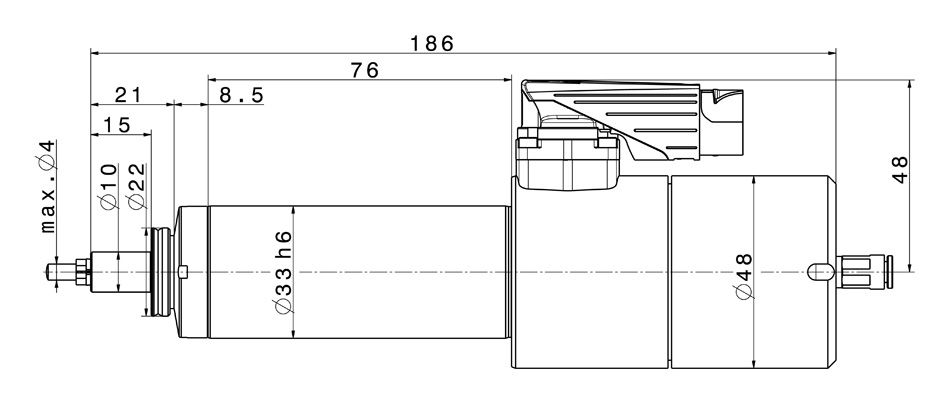

Part No. | 2001 9380 |
Applications | Drilling, Milling, Grinding, Engraving |
Housing diameter | 33 mm |
Motor system | 3 Phase asynchronous motor |
Speed range | 6,000 - 80,000 rpm |
Frequency | 100 - 1,333 Hz |
Voltage | 49 V |
Current | S1: 6.6 A, max. 8 A |
Torque | S1: 8.4 Ncm, max. 8.4 Ncm |
Output power | S1: 420 W, max. 500 W |
Motor protection | KTY |
Weight | 1.0 kg |
Bearing system | 3 x Hybrid, lifetime lubrication |
Run-out (taper) | ≤ 1 µm |
Chuck clamping range | max Ø 4.0 mm |
Chuck type | C3 |
Tool change | Pneumatic 5 – 6 bar (hose Ø 4 mm) |
Cooling system | Cooling via clamping bracket |
Protection category | IP 55/57 (with sealing air + optional accessory: sealing cap 2001 2618) |
Protected against dirt and cooling lubricant | Sealing air 27 l/min@STP (hose outside Ø 4 mm) |
Housing material | Stainless steel |
Cable / plug type | 915 |
Inverter recommendation | e@syDrive® 4310 (IP 00)* e@syDrive® 4320 (IP 00)* e@syDrive® 4624* e@syDrive® 4625 e@syDrive® 4626 e@syDrive® TV 4504* |
Highlights | Taper cleaning at 6 bar |
*Reduced output power |

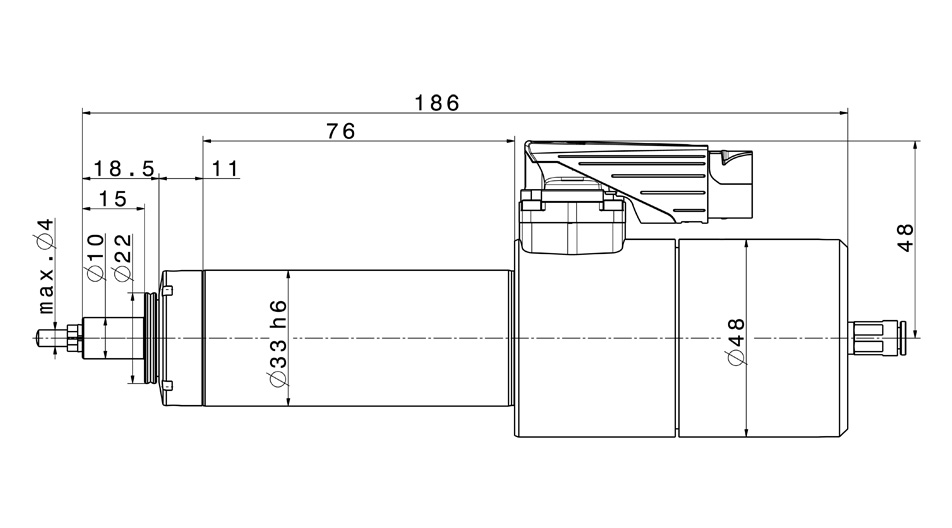

Part No. | 2001 9600 |
Applications | PCB routing |
Housing diameter | 33 mm |
Motor system | 3 Phase asynchronous motor |
Speed range | 6,000 - 80,000 rpm |
Frequency | 100 - 1,333 Hz |
Voltage | 49 V |
Current | S1: 6,6 A, max. 8 A |
Torque | S1: 8.4 Ncm, max. 8.4 Ncm |
Output power | S1: 420 W, max. 500 W |
Motor protection | KTY |
Weight | 1.0 kg |
Bearing system | 3 x Hybrid, lifetime lubrication |
Run-out (taper) | ≤ 1 µm |
Chuck clamping range | max Ø 4.0 mm |
Chuck type | C3 |
Tool change | Pneumatic 5 – 6 bar (hose Ø 4 mm) |
Cooling system | Cooling via clamping bracket |
Protection category | IP 55/57 (with sealing air + optional accessory: sealing cap 2001 2618) |
Protected against dirt and cooling lubricant | Sealing air 27 l/min@STP (hose inside Ø 4 mm) |
Housing material | Stainless steel |
Cable / plug type | 915 |
Inverter recommendation | e@syDrive® 4310 (IP 00)* e@syDrive® 4320 (IP 00)* e@syDrive® 4624* e@syDrive® 4625 e@syDrive® 4626 e@syDrive® TV 4504* |
Highlights | Electrostatic discharge |
*Reduced output power |
Part No. | 2000 6990 |
Applications | Drilling, Grinding, Engraving, Dental CAD/CAM |
Housing diameter | 33 mm |
Motor system | 3 Phase asynchronous motor |
Speed range | 6,000 - 60,000 rpm |
Frequency | 100 - 1,000 Hz |
Voltage | 49 V |
Current | S1: 6,6 A, max. 8 A |
Torque | S1: 8.4 Ncm, max. 8.4 Ncm |
Output power | S1: 420 W, max. 500 W |
Motor protection | KTY |
Weight | 1.0 kg |
Bearing system | 2 x Steel, lifetime lubrication |
Run-out (taper) | ≤ 1 µm |
Chuck clamping range | max Ø 4.0 mm |
Chuck type | C3 |
Tool change | Pneumatic 5 – 6 bar (hose Ø 4 mm) |
Cooling system | Cooling via clamping bracket |
Protection category | IP 55/57 (with sealing air + optional accessory: sealing cap 2001 2618) |
Protected against dirt and cooling lubricant | Sealing air 27 l/min@STP (hose outside Ø 4 mm) |
Housing material | Stainless steel |
Cable / plug type | 915 |
Inverter recommendation | e@syDrive® 4310 (IP 00)* e@syDrive® 4320 (IP 00)* e@syDrive® 4624* e@syDrive® 4625 e@syDrive® 4626 e@syDrive® TV 4504* |
Highlights | Taper cleaning at 6 bar |
*Reduced output power |
Part No. | 2001 2520 |
Applications | PCB routing |
Housing diameter | 45 mm |
Motor system | 3 Phase asynchronous motor |
Speed range | 5,000 - 50,000 rpm |
Frequency | 83 - 833 Hz |
Voltage | 48 V |
Current | max. 13 A |
Torque | S1: 7.5 Ncm, max. 27 Ncm |
Output power | S1: 175 W, max. 500 W |
Motor protection | PTC-100°C |
Weight | 3.5 kg |
Bearing system | 3 x Hybrid, lifetime lubrication |
Run-out (taper) | ≤ 1.5 µm |
Chuck clamping range | Ø 1.0 – 6.35 mm (incl. 1/8'' + 1/4'') |
Chuck type | C4 |
Tool change | Pneumatic 5 – 6 bar |
Cooling system | Cooling via clamping bracket |
Protection category | IP 54 |
Protected against dirt and cooling lubricant | Sealing air 0.5 – 0.8 bar (hose inside/outside Ø 4/6 mm) |
Housing material | Stainless steel |
Cable / plug type | EM-C16 |
Inverter recommendation | e@syDrive® 4625 e@syDrive® 4626 |
Highlights | Electrostatic discharge |
Part No. | 0675 0530 |
Applications | Drilling, Milling, Grinding, Engraving |
Housing diameter | 45 mm |
Motor system | 3 Phase asynchronous motor |
Speed range | 5,000 - 50,000 rpm |
Frequency | 83 - 833 Hz |
Voltage | 48 V |
Current | max. 13 A |
Torque | S1: 7.5 Ncm, max. 27 Ncm |
Output power | S1: 175 W, max. 500 W |
Motor protection | PTC-100°C |
Weight | 3.5 kg |
Bearing system | 3 x Hybrid, lifetime lubrication |
Run-out (taper) | ≤ 1.5 µm |
Chuck clamping range | Ø 1.0 – 6.35 mm (incl. 1/8“ + 1/4“) |
Chuck type | C4 |
Tool change | Pneumatic 7 – 8 bar |
Cooling system | Cooling via clamping bracket |
Protection category | IP 54 |
Protected against dirt and cooling lubricant | Sealing air 0.5 – 0.8 bar (hose inside/outside Ø 4/6 mm) |
Housing material | Stainless steel |
Cable / plug type | EM-C16 |
Inverter recommendation | e@syDrive® 4625 e@syDrive® 4626 |
Part No. | 2002 2700 |
Applications | Drilling, Milling, Grinding, Engraving |
Housing diameter | 60 mm |
Motor system | 3 Phase asynchronous motor |
Speed range | 5,000 - 50,000 rpm |
Frequency | 83 - 833 Hz |
Voltage | 230 V |
Current | max. 7 A |
Torque | S1: 21 Ncm, max. 80 Ncm |
Output power | S1: 450 W, max. 1,800 W |
Motor protection | PTC-100°C |
Weight | 4.0 kg |
Bearing system | 3 x Hybrid, lifetime lubrication |
Run-out (taper) | ≤ 1.5 µm |
Chuck clamping range | Ø 1.0 – 6.35 mm (incl. 1/8'' + 1/4'') |
Chuck type | C4 |
Tool change | Pneumatic 5 – 6 bar (hose inside/outside Ø 4/6 mm) |
Cooling system | Cooling via clamping bracket |
Protection category | IP 54 |
Protected against dirt and cooling lubricant | Sealing air 0.5 – 0.8 bar (hose inside/outside Ø 4/6 mm) |
Housing material | Stainless steel |
Cable / plug type | M23 / M23-QL |
Inverter recommendation | Inverter e@syDrive® 4638 |
Highlights | • Collet stop • Taper cleaning |
Part No. | 2002 3700 |
Applications | Drilling, Milling, Grinding, Engraving |
Housing diameter | 60 mm |
Motor system | Brushless DC motor (BLDC) |
Speed range | 6,000 - 60,000 rpm |
Frequency | 100 – 1,000 Hz |
Voltage | 230 V |
Current | max. 12 A |
Torque | max. 65 Ncm |
Output power | max. 3,000 W |
Motor protection | PTC-100°C |
Weight | 4.0 kg |
Bearing system | 3 x Hybrid, lifetime lubrication |
Run-out (taper) | ≤ 1.5 µm |
Chuck clamping range | Ø 1.0 – 6.35 mm (incl. 1/8'' + 1/7'') |
Chuck type | C4 |
Tool change | Pneumatic 5 – 6 bar (hose inside/outside Ø 4/6 mm) |
Cooling system | Cooling via clamping bracket |
Protection category | IP 54 |
Protected against dirt and cooling lubricant | Sealing air 0.5 – 0.8 bar (hose inside/outside Ø 4/6 mm) |
Housing material | Stainless steel |
Cable / plug type | M23 / M23-QL |
Inverter recommendation | e@syDrive® 4638 |
Highlights | • Collet stop • Taper cleaning |
Part No. | 2002 0700 |
Applications | Drilling, Milling, Grinding, Engraving |
Housing diameter | 45 mm |
Motor system | 3 Phase asynchronous motor |
Speed range | 6,000 – 60,000 rpm |
Frequency | 100 – 1,000 Hz |
Voltage | 180 V |
Current | S1: 3.5 A, max. 5.0 A |
Torque | S1: 11.5 Ncm, max. 19.5 Ncm |
Output power | S1: 650 W, max. 1,280 W |
Motor protection | PTC |
Weight | 2.6 kg |
Bearing system | 3 x Hybrid, lifetime lubrication |
Run-out (taper) | ≤ 1 µm |
Chuck clamping range | max. Ø 6.0 mm |
Chuck type | C5 |
Tool change | Pneumatic 3.5 – 4.0 bar (hose Ø 6 mm) |
Cooling system | Cooling via clamping bracket |
Protection category | IP 55 |
Protected against dirt and cooling lubricant | Sealing air 25 – 30 l/min@STP (hose Ø 6 mm) |
Housing material | Stainless steel |
Cable / plug type | M23 / M23-QL |
Inverter recommendation | e@syDrive® 4638 |
Highlights | • Taper cleaning at 4 bar • Collet stop |

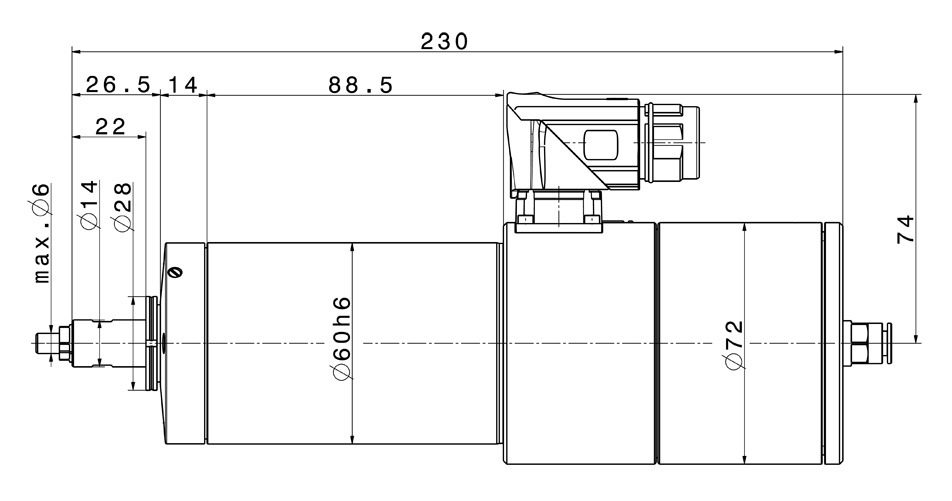

Part No. | 2002 6300 |
Applications | Drilling, Milling, Grinding, Engraving |
Housing diameter | 60 mm |
Motor system | 3 Phase asynchronous motor |
Speed range | 6,000 – 60,000 rpm |
Frequency | 100 – 1,000 Hz |
Voltage | 180 V |
Current | S1: 13.5 A, max. 27 A |
Torque | S1: 55 Ncm, max. 120 Ncm |
Output power | S1: 3,000 W, max. 3,600 W |
Motor protection | PTC |
Weight | 3.2 kg |
Bearing system | 3 x Hybrid, lifetime lubrication |
Run-out (taper) | ≤ 1.5 µm |
Chuck clamping range | Ø 1.0 – 6.0 mm (incl. 1/8'' + 1/4'') |
Chuck type | C5 |
Tool change | Pneumatic 3.5 – 4.0 bar (hose Ø 6 mm) |
Cooling system | Cooling via clamping bracket |
Protection category | IP 55 |
Protected against dirt and cooling lubricant | Sealing air 30 l/min@STP (hose Ø 6 mm) |
Housing material | Stainless steel |
Cable / plug type | M23 / M23-QL |
Inverter recommendation | e@syDrive® 4638 CONTROL TECHNIQUES Unidrive HS30* |
Highlights | • Taper cleaning at 4 bar • Collet stop • ESD (carbon brush) |
*Reduced output power |
Electrohusillos cambio herramienta automático
Preciso y de gran fiabilidad.
Documentos
Características
Los husillos de cambio herramienta automático son la primera opción para los centros de mecanizado y fresado. Tanto si se utilizan en el mecanizado para la fabricación de automóviles, en la construcción de herramientas y matrices, o en la tecnología aeroespacial, los husillos GMN proporcionan la mayor productividad en todas las áreas.
Estos husillos llevan rodamientos de ultraprecisión de bolas de cerámica de fabricación propia. Para controlar la temperatura de los rodamientos frontales y del estátor dispone de un sistema de refrigeración.
La mayoría de los modelos van lubricados por aire/aceite. Algunos tipos van lubricados con grasa de por vida.
Aplicaciones
- Mecanizado.
- Torneado mediante bloqueo de eje con dentado Hirth.
- Fresado.
- Rectificado de interiores, exteriores y superficies planas.
